Metal Carriage
Jump to navigation
Jump to search

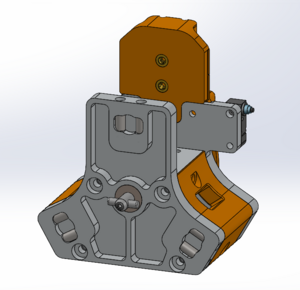

The metal carriage was designed and tested by @Nanotech and machined by Mandala Rose Works.
Specs
- very stiff interface between tools and the motion system
- ~93 [grams]
- accommodates both 6 [mm] and 9 [mm] belts
3D Printed Parts and Settings
Print parts specific to your setup with the following print settings:
- print in the provided orientations
- PLA
- 0.4mm nozzle
- No supports
- 0.2mm layer height
- 6 perimeter layers ← this is esp important for parts with heat-set inserts
- external perimeter first
Table TODO
Assembly Instructions
Assembly Instructions TODO
