File:Duet2 Frame Wiring.png

Original file ‎(2,800 × 2,071 pixels, file size: 1,007 KB, MIME type: image/png)

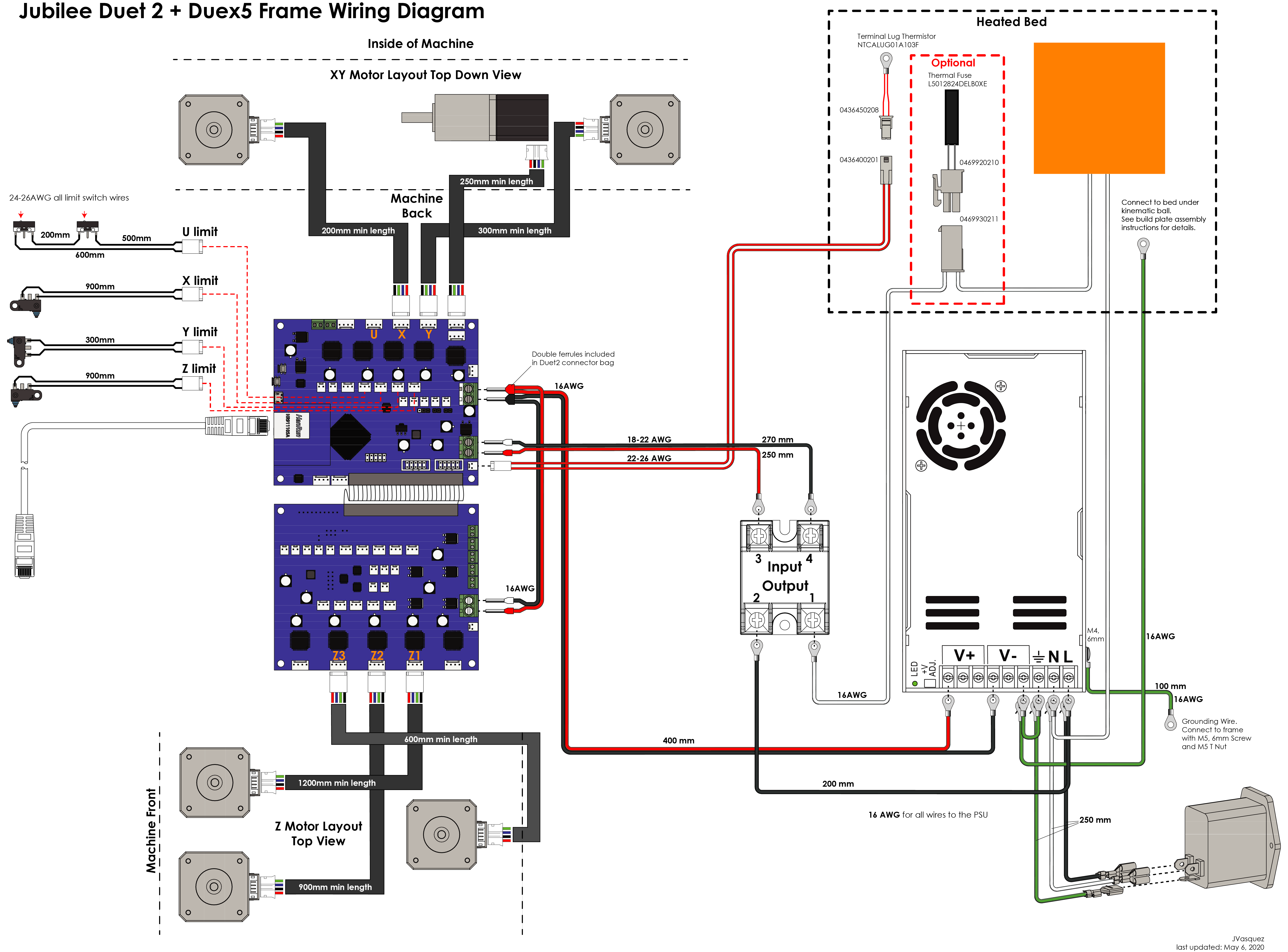

The Duet 2 Frame Wiring Diagram. For the latest version, see the linked PDF below.
