XYZ Probe Tool
Jump to navigation
Jump to search

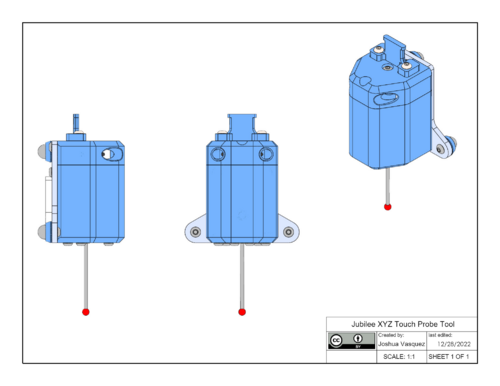

The XYZ Probe Tool is a compact touch probe capable of inspecting objects installed into the machine or acting as supplementary way of homing the machine.
Specs
- kinematic coupling based design
- looks like a mechanical limit switch in software
- uses an off-the-shelf ruby-tipped cnc probe tip
Parts to Buy
All parts to buy are called out in this spreadsheet.
Assembly Tools
- 1.5mm Hex Key
- Budget Soldering Iron for installing heat set inserts
- Recommended: Heat-Set Insert Installation Tip. This one will work for M3 and M4 inserts.
3D Printed Parts and Settings
Print all parts in the default model orientations using the following settings. Note that some special settings exist for particular parts; they are noted in the table.
Common Settings
- PLA
- 0.4mm nozzle
- No supports
- 0.2mm layer height
- 6 perimeters ← this is esp important for parts with heat-set inserts
- 20% infill (any pattern)
Parts and Special Settings
XYZ ProbeTool
| Qty | Part Source | Special Settings |
|---|---|---|
| 1 | Coupling Junction | |
| 1 | Base | |
| 1 | Lid | |
| 1 | Spring Stud | |
| 1 | Wire Tab | |
| 3 | Tool Ball Cup |
Parking Post
| Qty | Part Source | Special Settings |
|---|---|---|
| 1 | Parking Post Base xxH x xxW | |
| 1 | Tool Holder xxH x xxW |
Assembly Instructions
- Probe Tool Instructions
- Parking Post Instructions.
- Note: this parking post uses 50[mm] dowel pins, instead of the normal 60[mm] ones.
Software Configuration
TODO
